55寸LG1.8mm液晶拼接屏-55寸液晶拼接屏报价-华邦瀛科技

Technical Parameters

技术参数

Product number	HBY-PJ550P-3	screen size	1209.6mm*680.4mm	Bilateral patchwork	1.8mm
brightness	500 cd/m²	Dimensions	1211.4682.2161.6mm	Power consumption	280W/h
Contrast	4000:1	Boot response time	6ms	Resolution	1920*1080
Viewing angle	178°	weight	38KG	Service life	6W hours

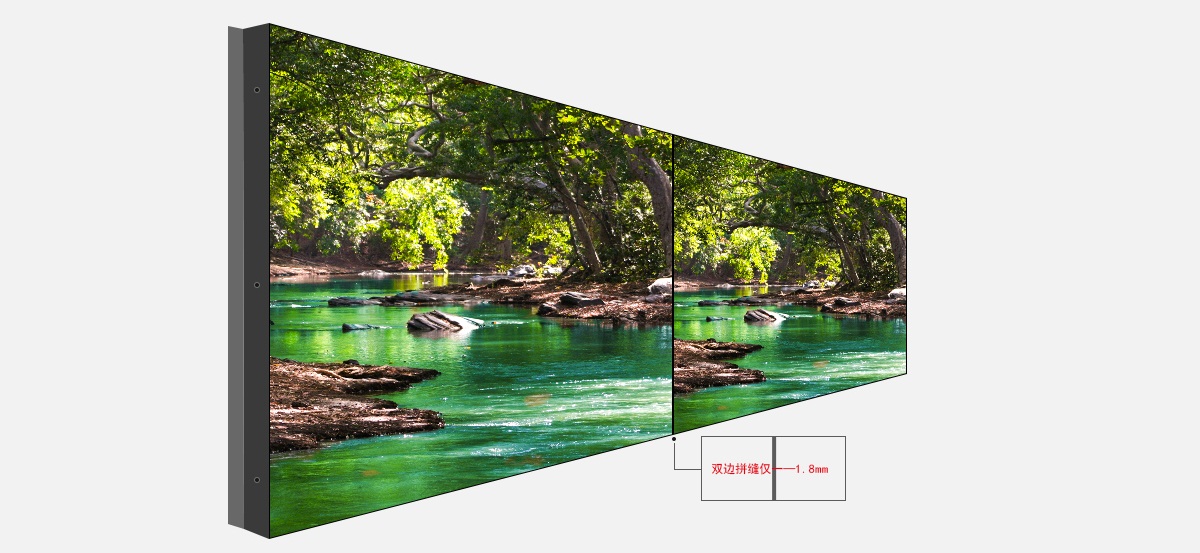

Ultra-narrow frame design, perfect visual feast

The 1.8mm splicing narrow border design makes the display between the screens almost seamless. The width of the left/top border of the spliced display is 0.9mm.

The width of the right/bottom border is 0.9mm, and the border interval is only 1.8mm when multi-screen splicing

LCD splicing unit, multi-view angle analysis


Intelligent split screen, any combination of single screen and multiple screens

Diversified image splicing display, which can set the size and position of the display signal window, and easily realize the functions of combined display, stretching, image roaming, etc.

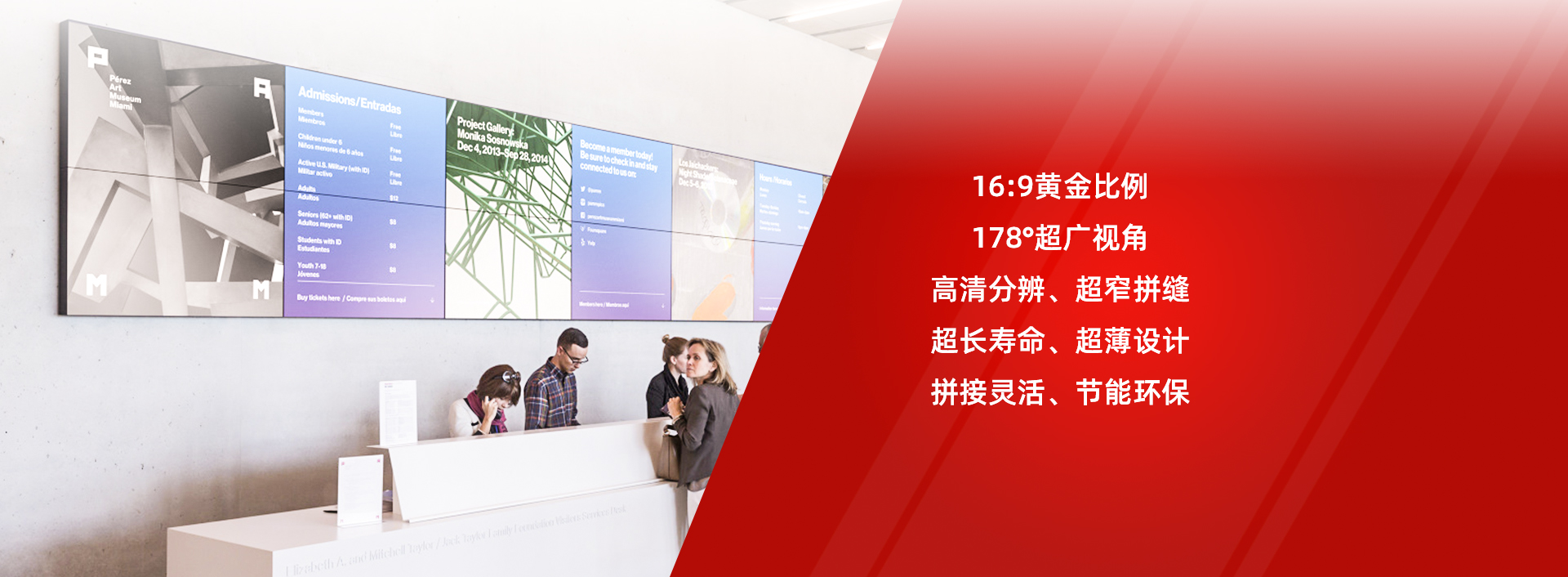

Application environment

It can be used in various environments

Various installation methods

The installation mode can be adjusted according to the different wall structure and the size of the project area. Engineers all over the country to install, so that you can avoid worries


LCD splicing screen parameter table

LCD screen	Size	55 inches
	Display area	1209.6mm*680.4mm
	Equipment size	1020.02mm574.61mm125.7mm
	Resolving power	1920*1080
	Pixel spacing	0.9mm*0.9mm
	Brightness	500cd/m2
	Contrast ratio	4000:1
	Color	16.7M
	Gamut	0.72
	Viewing angle	178°
	Response time	6ms
	Physical seam	1.8mm
Image	Proportion	16:9
	Wave filter	3D comb filter, digital noise reduction
	Video format	PAL/NTSC
Input port	HDMI	1-way HDMI 1.41920* 1080@60HZ Downward compatibility
	DVI	1-way DVI-I, 1920* 1080@60HZ Downward compatibility
	VGA	1-way VGA (DB-15), 1920* 1080@60HZ Downward compatibility
	AV	2-way AV, 1920* 1080@60HZ Downward compatibility
	USB	1 channel, supporting video, picture and audio playback
	RS232	1-way RS232
Ring out port	AV	2-way AV, 1920* 1080@60HZ Downward compatibility
Ring out port	RS232	2-way RS232
Electrical performance	Input	AC100-240V wide voltage input
	Power waste	280W
	Standby power	0.5W
Environmental Science	Storage temperature	-20~ 65°C
Environmental Science	Working temperature	0~ 50°C
Weight	Net weight	38KG
