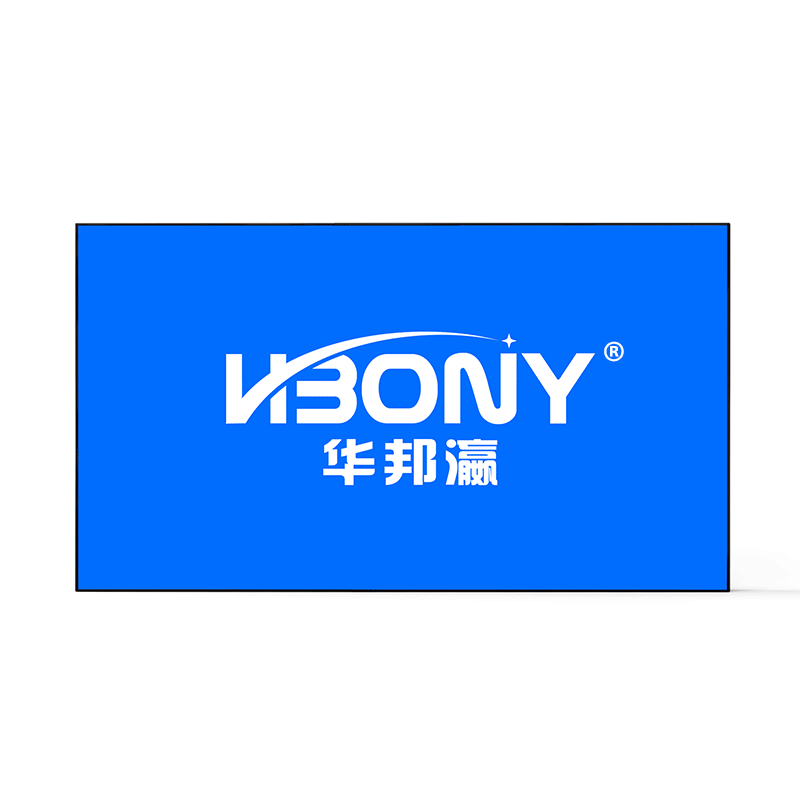

46 inch Samsung 1.7mm LCD splicing screen
46 inch Samsung 1.7mm LCD splicing screen
46 inch Samsung 1.7mm LCD splicing screen
  • 46 inch Samsung 1.7mm LCD splicing screen
  • 46 inch Samsung 1.7mm LCD splicing screen
  • 46 inch Samsung 1.7mm LCD splicing screen

Technical Parameters

技术参数


Product number
HBY-PJ460P-2
screen size
1018.1mm*572.7mm
Bilateral patchwork
1.7mm
brightness500 cd/m2physical dimension
1020.02*574.61*125.7mm Power consumption220W/h
Contrast4000:1Boot response time6msResolution1920*1080
Viewing  angle178°weight26KGService life6Whour

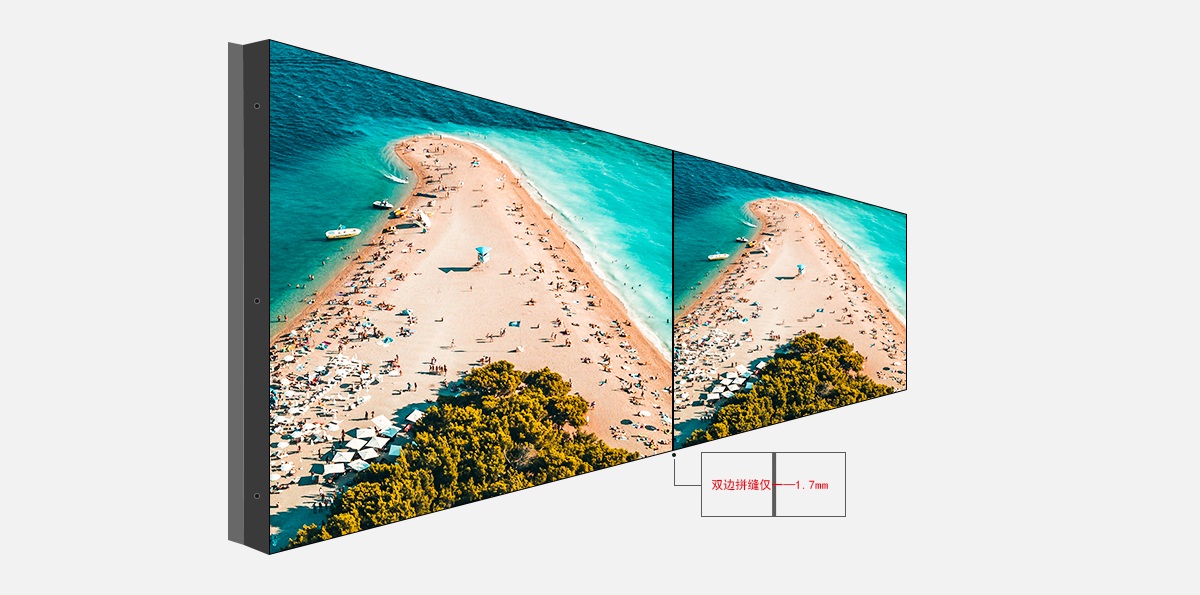

Ultra-narrow frame design, perfect visual feast

The 1.7mm splicing narrow frame design makes the display between the screens almost seamless. The width of the frame on the left/upper side of the spliced display is 1.15mm.

The width of the right/bottom border is 0.55mm, and the border interval is only 1.7mm when multi-screen splicing





LCD splicing unit, multi-view angle analysis



Intelligent split screen, any combination of single screen and multiple screens

Diversified image splicing display, can set the size and position of the display signal window, and easily realize the functions of combined display, stretching, image roaming, etc.3(1).jpg


Application Environment

Can be used in various environments





LCD splicing screen parameter table

LCD screensize46 inches
Display area1018.1mm*572.7mm
Equipment size1020.02mm*574.61mm*125.7mm
Resolution1920*1080
Pixel pitch0.53025mm*0.53025mm
brightness500cd/m2
Contrast4000:1
color16.7M
Color gamut0.72
Viewing angle178°
Response time6ms
Physical patchwork1.7MM
imageproportion16:9
Wave filter3D comb filtering, digital noise reduction
Video formatPAL/NTSC
Input portHDMI1 channel HDMI 1.4, 1920*1080@60HZ backward compatible
DVI1 DVI-I, 1920*1080@60HZ backward compatible
VGA1 channel VGA(DB-15), 1920*1080@60HZ backward compatible
AV2 channels AV, 1920*1080@60HZ backward compatible
USB1 channel, support video, picture, audio playback
RS2321 RS232
Loop out portAV2 channels AV, 1920*1080@60HZ backward compatible
RS2322 RS232
Electrical performanceenterAC100-240VWide voltage input
Power consumption180W
Standby power consumption0.5W
surroundingsstorage temperature-20~ 65°C
Operating temperature0~ 50°C
surroundingsnet weight26KG
