As one of the important places of the company, the meeting room is responsible for the company's daily meeting, work plan deployment, progress report, achievement analysis, problems found in the process of work, reception of customers, staff training, and mutual discussion and solution among departments. Recently, an enterprise in Shanghai introduced a set of touch LCD splicing screen to huabangying, a LCD splicing screen manufacturer Display equipment for conference room, facilitate better implementation of work allocation, holding meetings, etc.

Huabangying's LCD splicing screen has the industry-leading direct down backlight, using industrial grade LCD panel, the display picture is delicate and lifelike, such as immersive; 1920 * 1080 ultra-high resolution and 4500:1 clear contrast, HD does not distort; at the same time, it also has an ultra wide viewing angle of 178 ° and the display picture is clear, the color is clear, the details are perfectly outlined, and each frame is left behind Extraordinary impression.

At the same time, LCD splicing screen has innovative anti glare screen, which can effectively prevent dazzling glare; 3D comb filter and dynamic noise reduction technology can be far away from machine noise interference, with fast response of 6ms, smooth and natural image, and higher efficiency; its service life can reach more than 70000 hours, long-term stable operation, ultra wide viewing angle, supporting 7 * 24-hour uninterrupted function, extremely low energy consumption and high cost performance.

Project specification:

Splicing unit: HBY-PJ550P

Splicing seam: 3.5mm

Splicing specifications: 3*3/55 inch

Contrast ratio: 4500:1

Resolution: 1920*1080

Response time: less than 6ms

Operating life: more than 70000h

Installation method: embedded, hydraulic front maintenance bracket

Brightness: 500cd/m2

Construction unit: LCD splicing screen manufacturer Winbond Ying Technology

Panel type: Samsung industrial grade S-PVA panel

Installation environment introduction:

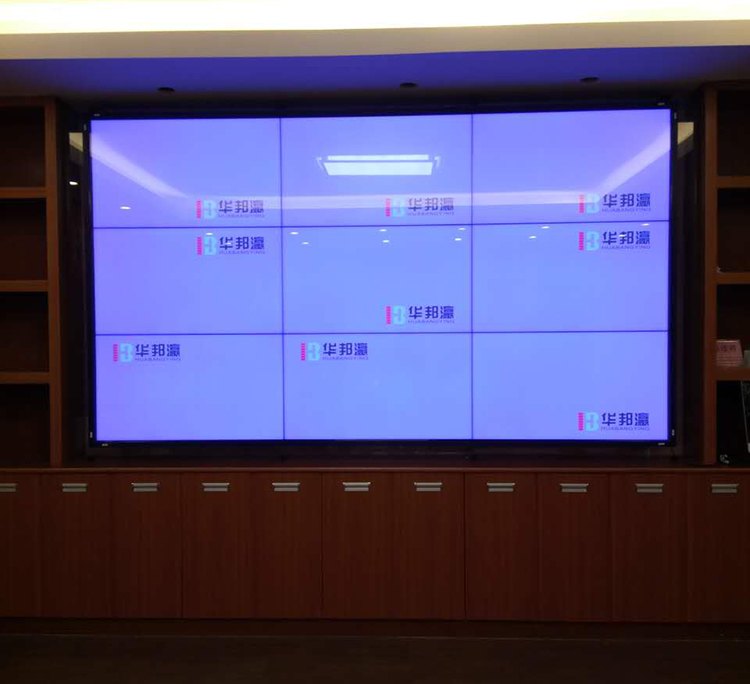

1. The height of the splicing cabinet is H=2.23m, and the length L=3.86m. According to the requirements of the other party, the splicing screen needs to be balanced and centered. Comprehensive budget and various factors, a 3*3 55-inch total of 9 splicing large screens have been formulated. (55 inches H≈68.4cm, L≈121.3cm)

2. The splicer is used to process the access to meet the needs of the conference system. Multi-screen, single-screen, overlay display, etc., support multiple signal access.

3. It is installed with embedded hydraulic front maintenance bracket, which saves space and is high-end fashion; not only that, as long as you lightly press the surface or frame of the screen, any screen can be ejected at a uniform speed and slowly, and then like a drawer, the LCD splicing screen can be used. Pull out more than 20 cm horizontally. If there is a problem with a single screen in the future, it can be directly disassembled and installed without affecting other screens.

4. The power supply system at the installation site is operating normally and is close to three-phase balance. The load power of each connection is basically the same, and the grounding is good, less than 4 ohms, which can ensure the safety of the loop.

5. The construction site environment is clean and dust-free; the floor where the projection unit is installed is flat and firm; the splicing cabinet can load.

6. On-site wiring lines, separate strong and weak wires with a wire slot to prevent signal interference; there is no direct strong light near the screen, so as not to affect the display of the splicing screen and cause reflection.

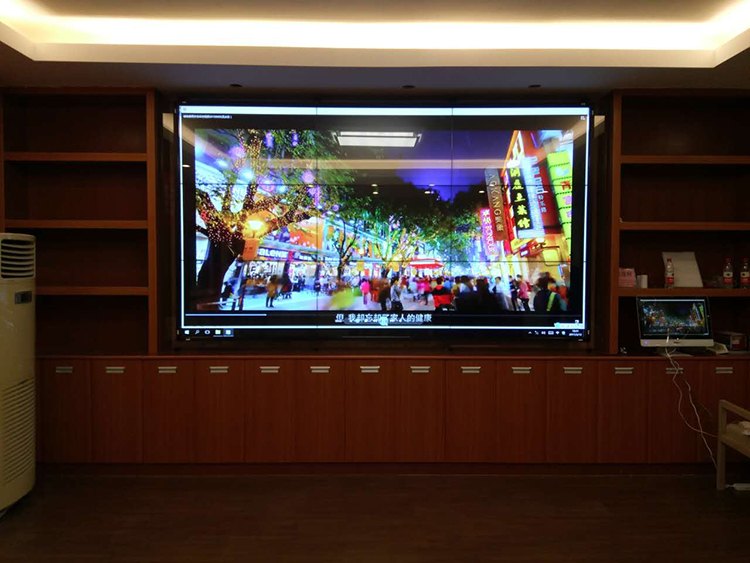

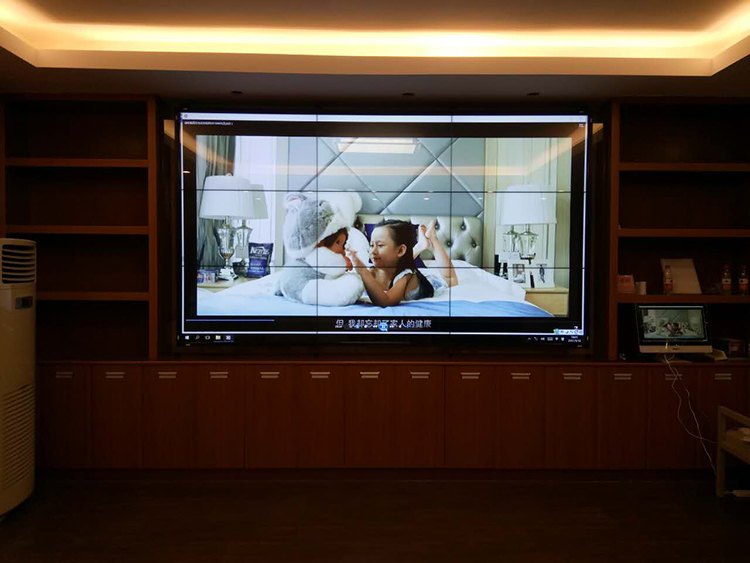

It is worth mentioning that this LCD splicing screen is touch-sensitive, and the content on the screen can be controlled by a touch stick, hand, etc., similar to a large "tablet computer", simple, convenient, and easy to operate. During the meeting, some problems encountered or implementation of the work plan, etc., the person in charge of the meeting can analyze the presentation on the spot, the meeting efficiency is higher.

Now the project has been successfully completed. After the trial production, verification, acceptance and other processes, the enterprise has expressed great recognition and praise to huabangying, a LCD splicing screen manufacturer. In the future, huabangying will continue to move forward, focus on customers, realize mutual benefit and coexistence, and strive to provide customized and personalized display solutions and products for more customers。
