Because of its unique high-definition display screen, LCD splicing screens can be formed into large screens with ultra-narrow seams, which are quite popular among users. It has become one of the most popular display devices nowadays. Shenzhen Songgang Street Office once offered LCD splicing screen manufacturer Winbond Ying Four 46-inch LCD splicing screens and four LCD monitor screens form a conference monitoring system, which is placed in the conference monitoring room of the street office.

In response to the national harmonious development policy, promote effective community management, effectively supervise and dispatch various tasks in the jurisdiction, and smoothly carry out various activities in the jurisdiction, such as community spiritual and cultural construction meetings, residents conflict mediation plans, and management and coordination of floating population , Carry out various services, maintain and protect the legitimate rights and interests of residents, etc. LCD splicing screens play an important role in the conference monitoring system.

Specifications of this project:

Splicing unit: HBY-PJ460P

Splicing seam: 3.5mm

Contrast ratio: 4500:1

Resolution: 1920*1080, the picture is detailed, bright and followable.

Response time: less than 6ms, extremely fast response, refusal to procrastinate

Operating life: more than 70,000h, support various long-time startup environments

Installation method: cabinet installation, easy to maintain, simple and stylish, high-end atmosphere

Brightness: 500cd/m2

Splicing specifications: 2*2/46 inch LCD splicing screen

Contractor: LCD splicing screen manufacturer Winbond Ying Technology Co., Ltd., CCTV discovery brand, high-tech enterprise, famous Chinese brand.

Panel type: Samsung industrial grade S-PVA panel.

Huabangying LCD splicing screen has the industry-leading direct down backlight, the display screen color saturation, delicate lines clear, 1920 * 1080 ultra-high resolution and 4500:1 clear contrast, high-definition without distortion; with innovative anti glare screen, can effectively prevent glare, excellent visual experience; 6ms fast response, refuse to wait; low energy consumption, low operating cost, in line with In line with the current green development concept, it supports 7 * 24-hour uninterrupted operation, adapts to various long-time startup environments, and has higher cost performance.

Site installation environment:

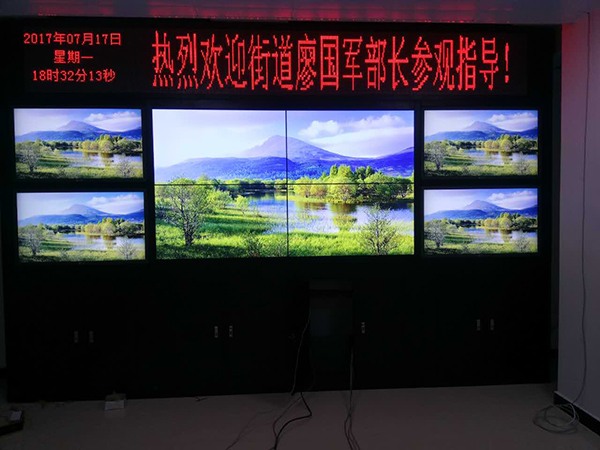

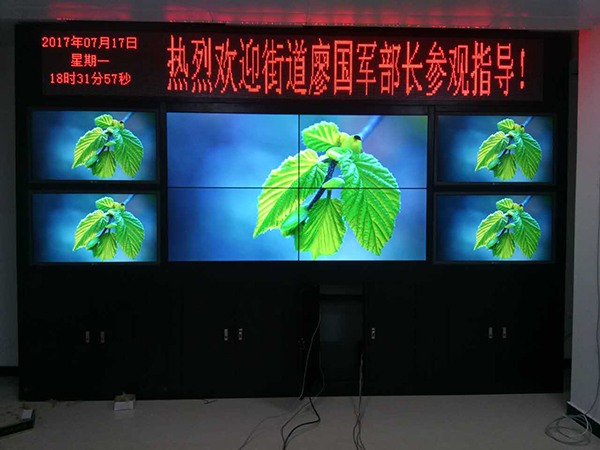

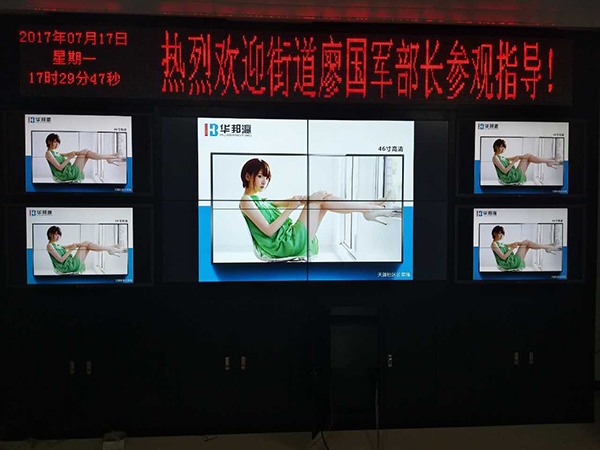

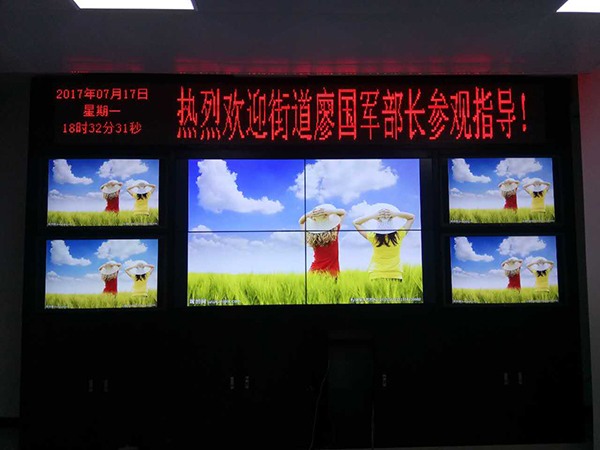

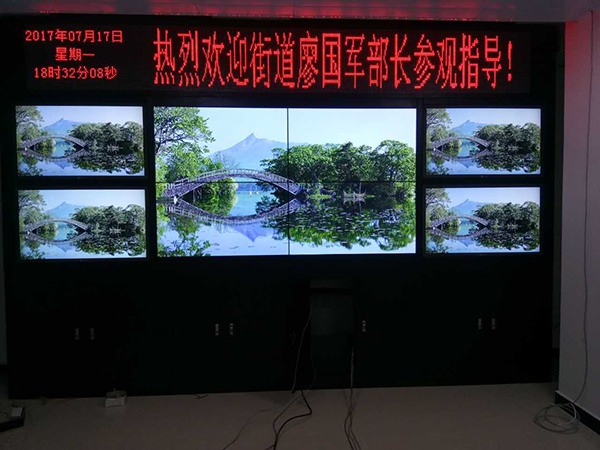

1. The height of the splicing cabinet is h = 2.78m, width L = 4.21M. The two parties have negotiated and formulated a 2 * 2-inch LCD splicing scheme. The four LCD monitoring screens are located at the left and right ends to cooperate with the LCD splicing screen (46 inch LCD splicing screen h ≈ 57.8cm, l ≈ 102.3cm)

2. It adopts hybrid matrix access, which supports both conference system and monitoring system. It can do more with one action. It is compatible with multiple signal access and resolution of various specifications below 1920 * 1080. It also supports decoding, compiling, roaming, free segmentation and superposition of pictures。

3. The site environment is clean, there is no strong light direct splicing screen, the heat dissipation system is good and meets the installation conditions.

4Before installation, check the power supply system, close to the three-phase balance, the load power of each wiring is close to each other, the strong current cable and the weak current cable are separated by the raceway to prevent signal interference.

5. Cabinet type installation, high-end atmosphere, easy to maintain, simple and fashionable, high-end atmosphere. There is a maintenance channel of about 1m in the rear。

Now the project has been put into use for two years, and has been running stably without any problems. Songgang sub district office is extremely satisfied, and has also cooperated with huabangying on LED, advertising machine, touch all-in-one machine and other related projects.


The 46 inch LCD splicing screen cooperation project can be recognized and trusted by customers, which is an incentive and encouragement for the LCD splicing screen manufacturer huabangying. It also means that huabangying has stepped forward to the world's top commercial display brand. In the future, huabangying will continue to create personalized terminal display solutions, provide high-quality products and services, and benefit each customer Coexistence and coordinated development.
